DJI Lightbridge installation demonstration(with DJI 5.8G remote control system)

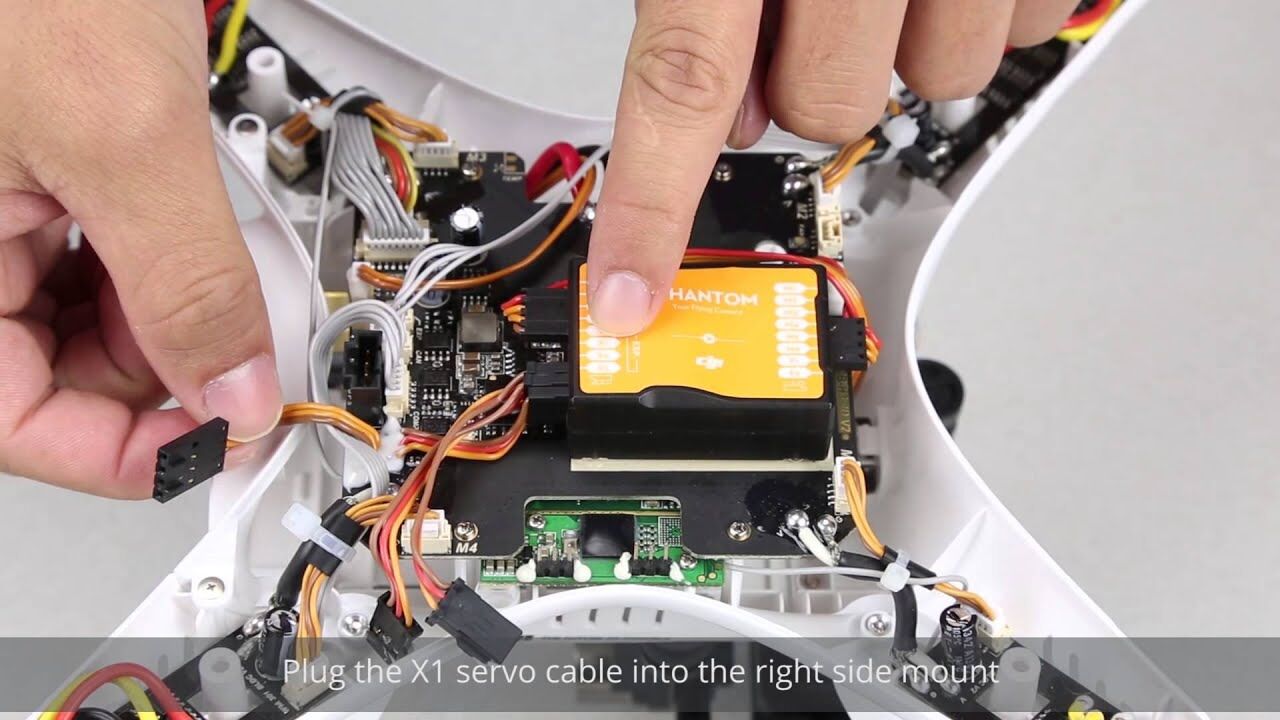

8 G remote control system. This is the DJI 5.8 G remote control system step one remove the propellers step to uncover the stickers and arms step 3. Remove the screws note keep the magnetic screwdriver away from the compass module on the landing skid step 4. Remove the upper shell and unplug the GPS cable step 5 unplug, the original 2.4 G receiver servo cable, step 6. Remove the receiver set screws, step 7 cut the nylon, cable ties and take out the antenna. Receiver unmounting is complete on the left side. Is the 2.4 ghz burr on the right side? Is the 5.8 g receiver next mount the 5.8 g receiver on the phantom to fasten the 5.8 g receiver module tighten the antenna with some nylon cable ties thread the antenna through the preformed hole and secure it unplug the exp cable to easily connect the receiver plug The X one servo cable into the right side mount plug the X two servo cable into the left side. Mount then plug the exp cable to complete the 5.8 GA receiver mounting. Now we will mount the light bridge. This is the gimbal cable connect it to the reserved exp port on the central board thread: the cable through the preformed hole on the phantom 2 to connect to the air system, plug the GPS, cable back in and remount the upper shell for the light bridge air System connection, please refer to the light bridge installation demonstration next demo, the 5.
8 g control link and 2.4 g image link turn on the 5.8 g remote control power up the phantom 2 five point: eight G, remote control, demo, motor spinning control, five point: eight G, remote Control demo, gimbal tilt control, connect your smartphone or tablet to the light bridge ground system press once to check the battery power hold for two seconds or longer to power up the system run the Lightbridge app 2.4 g image data transmission demo.
[compare_prices_deals]
source
Is there one that works on the Phantom 3 4k?
Can u tell me if I can install a lightbridge to a phantom 2 vision plus ? If so can u guide me in the right direction to do the install.
Is this compatible with the Phantom 3 4K?
OMG. That is a screwdriver used in an arduino robot kit.
so if you did the LB mod on a p3s . dose that mean you could use a p3a remote ?
Just buy a Dji phantom 3 advanced lol
Can I use for Dji fc40 ?
Hello my friend… I installed LB system on my airplane but with 200 or 300m image get freezed too much… almost impossible to use for FPV. You have original antenas? Did you made any upgrade?
Can i ad light bridge to my phantom 3 advanced
Can i ad light bridge to my phantom 3 standard ?
I am confused. Are you saying that having invested in a Gopro gimbal, DJI Lightbridge and a Phantom 2, I now need to buy something else to make it all work? I was flying happily beforehand and now, since installing the lightbridge, the original transmitter supplied with the Phantom does not work and is not recognised by the software. Please give me simple instructions as to what to do. Thanks!
This process will not work on the P2V+! Not on the new one or the old one!
thank you for the video. what is that 2.4ghz "chip" you put inside the quad itself? is that a part I can buy? would it be possible if i have a phantom 2 vision with stock controller (also 5.8ghz) to keep the controller as is and swap our the phantom's receiver with a 2.4ghz, or would that not be compatible?
This setup (5.8 GHz) is for when you use the Lightbridge only as a video transmitter.
WHY, in the WORLD would anyone ever want 5.8ghz control… Your control link will last at max a mile in an open area and won't make it behind anything…
